Designer Series 48" Wall-Mounted Chimney Hood

Color tabs

Stainless Steel

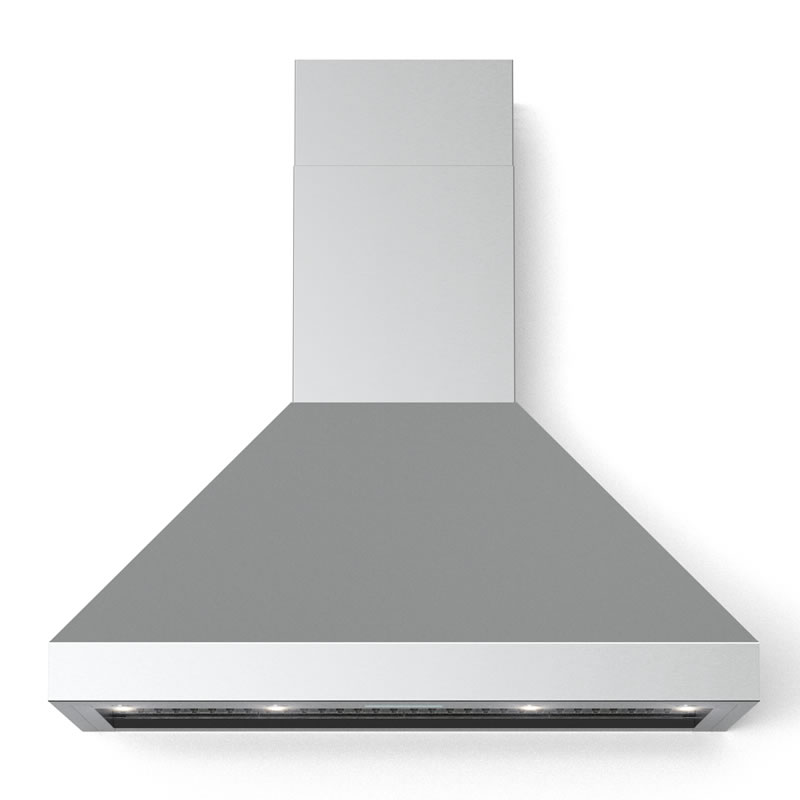

Front View
Front View
  • Front View

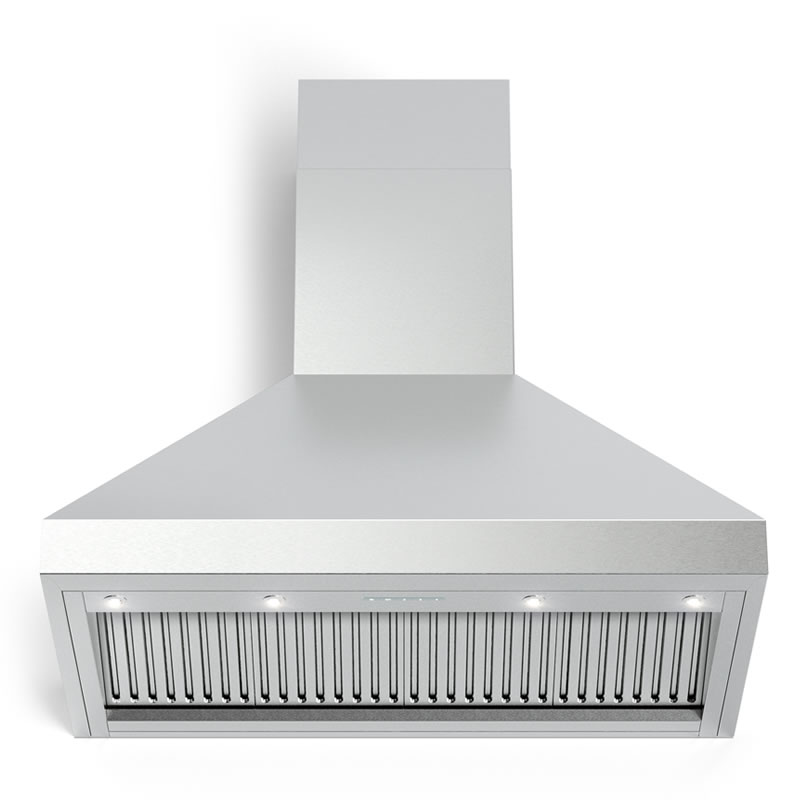

  • Below View

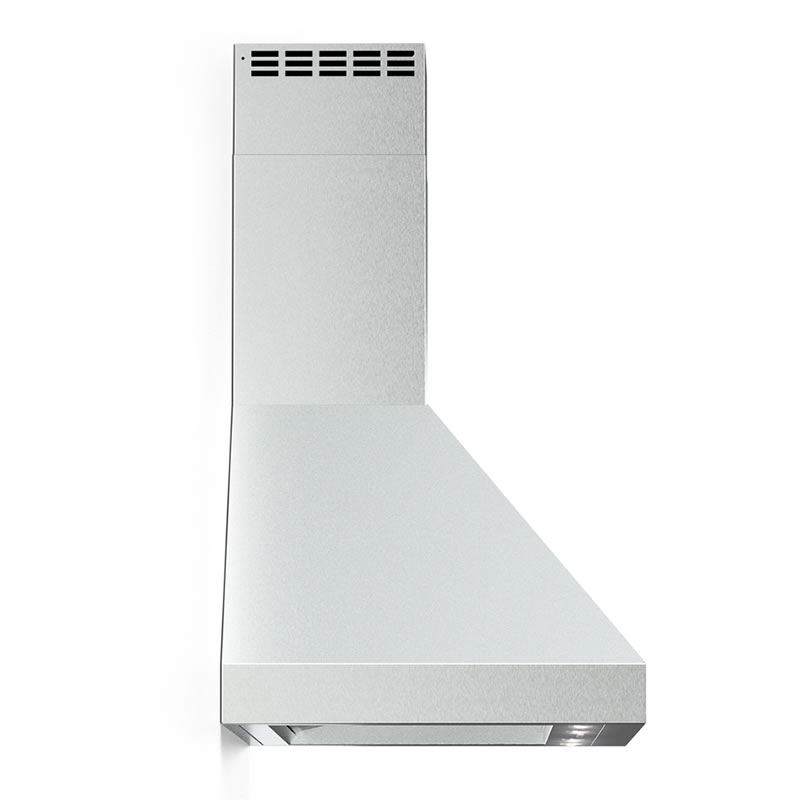

  • Left View

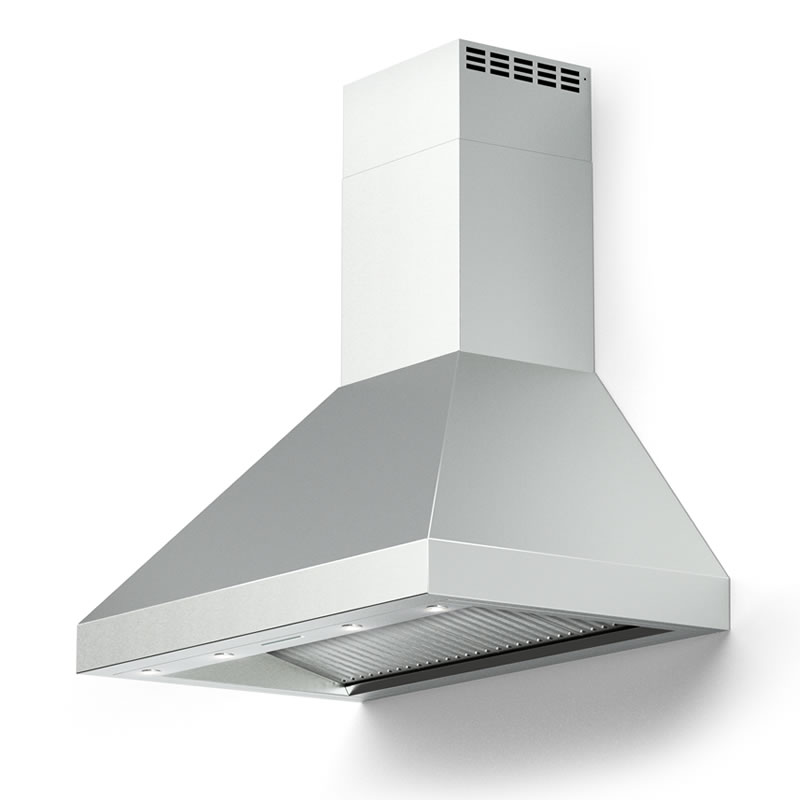

  • Diagonal View

Verona’s 48" Designer Series wall mounted chimney hood features 4 fan speeds, time delay shut-off, stainless steel baffle filters, and 4 LED lights.

The Verona chimney hood has a clean, straight-line design with rounded edges for a pro-style look that will add beauty and performance to any space.

A stainless steel 5-button back-lit keypad allows for easy adjustment of the fan speed, operation of the LED work lights and auto shut-off timer.

The hood is designed with a telescopic chimney that extends to fit 8 ft. ceiling heights, an extension for up to 12 ft. ceiling heights is available.

Additional features include:

  • Stainless steel, anti-grease baffle filters that are dishwasher-safe.
  • 1200-CFM motor for powerful ventilation of grease, smoke and odors from the kitchen.
  • Light indicator for grease filter maintenance.

For external ventilation, a 8" inch round duct is required.
For interior venting installation, an optional filtration kit is required.

Info

Features
Model number:
VECHW48GSS
  • 1,200 CFM
  • 4 Fan Speeds
  • Delayed Power Shut Off
  • 4 LED Lights
  • 3 Stainless Baffle Filters
  • All Stainless Steel
  • Welded Seamless Edges
  • Light Indicator for Grease Filter Maintenance
  • Light Indicator for Charcoal Filter Replacement
Specifications
  • Duct size: 8” (200 mm)
  • Width: 47¹⁵⁄₁₆” | Height: 32 ⁹⁄ᶾ₂” – 47¼” | Depth: 21”
  • 120V 60 Hz 15 AMP
  • 75 lbs.
