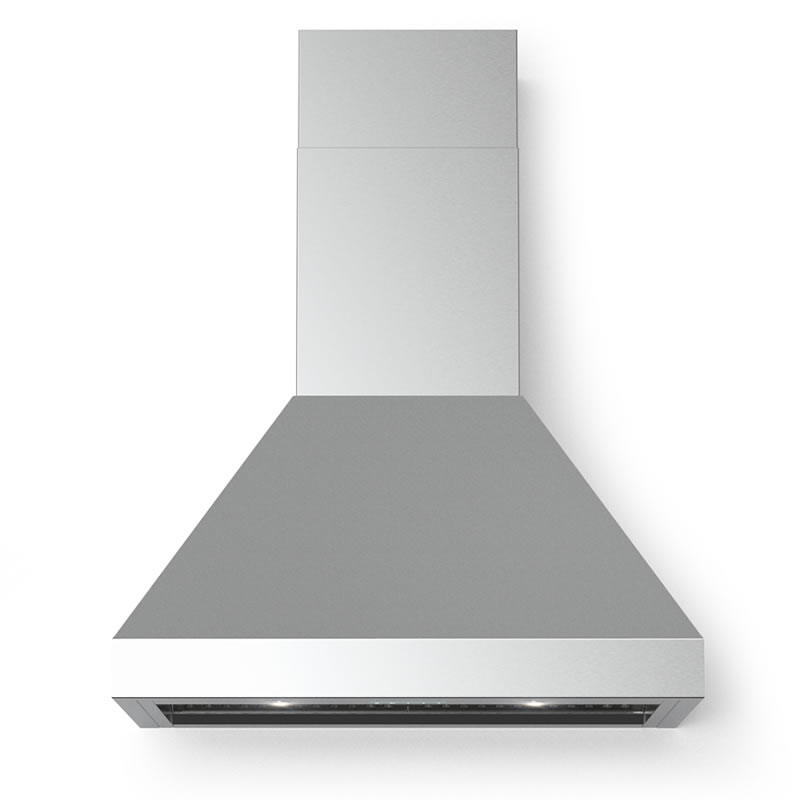

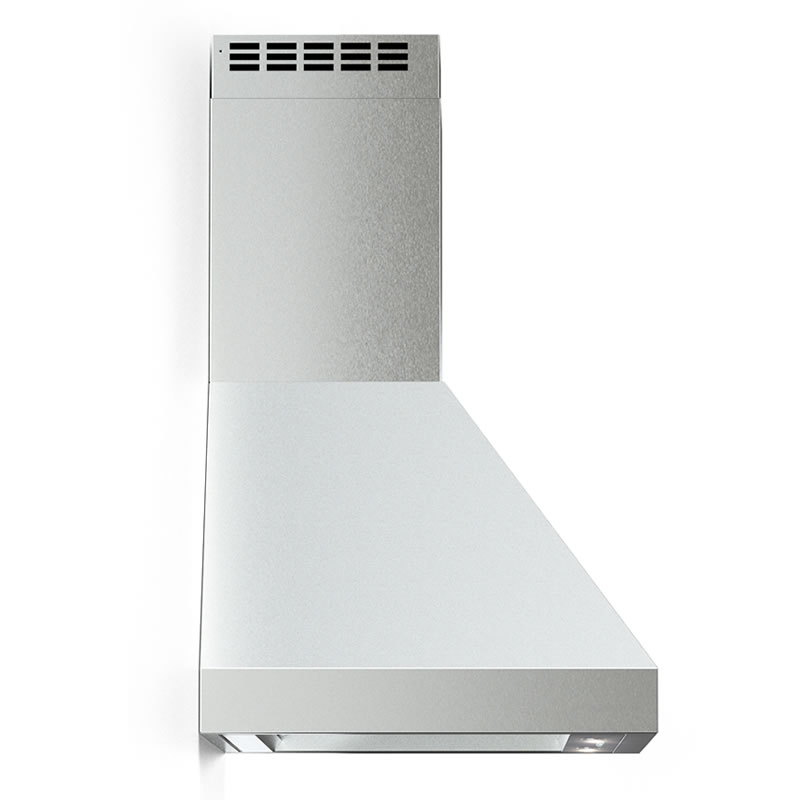

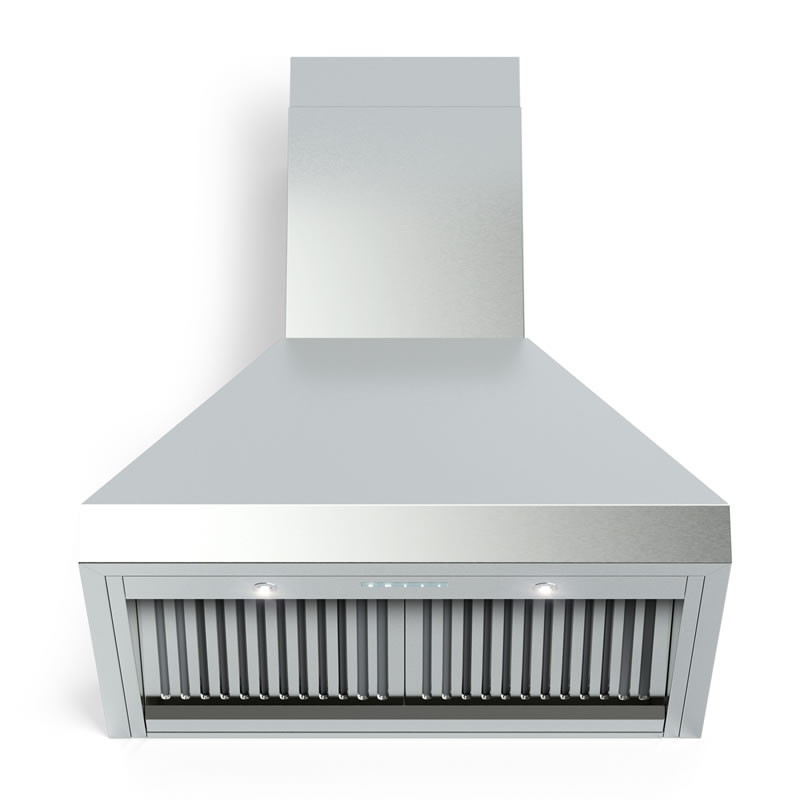

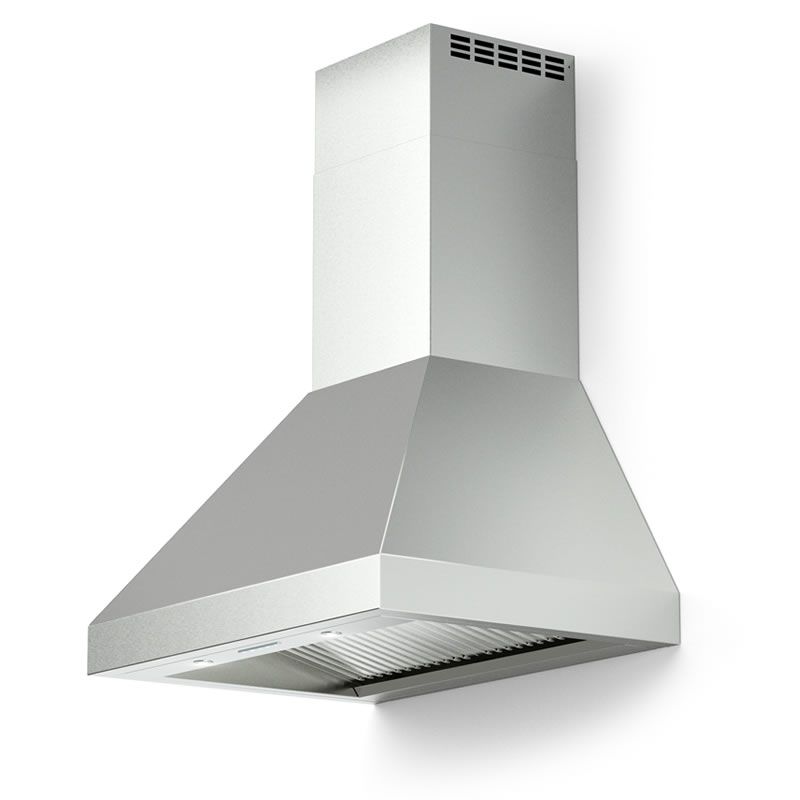

Designer Series 30" Wall-Mounted Chimney Hood

Verona’s 30" Designer Series wall mounted chimney hood features 4 fan speeds, time delay shut-off, stainless steel baffle filters, and 2 LED lights.

The Verona chimney hood has a clean, straight-line design with rounded edges for a pro-style look that will add beauty and performance to any space.

A stainless steel 5-button back-lit keypad allows for easy adjustment of the fan speed, operation of the LED work lights and auto shut-off timer.

The hood is designed with a telescopic chimney that extends to fit 8 ft. ceiling heights, an extension for up to 12 ft. ceiling heights is available.

Additional features include:

  • Stainless steel, anti-grease baffle filters that are dishwasher-safe.
  • 600-CFM motor for powerful ventilation of grease, smoke and odors from the kitchen.
  • Light indicator for grease filter maintenance.

For external ventilation, a 6" inch round duct is required.
For interior venting installation, an optional filtration kit is required.

    Features
    Model number
    VECHW30GSS
    • 600 CFM
    • 4 Fan Speeds
    • Delayed Power Shut Off
    • 4 LED Lights
    • 3 Stainless Baffle Filters
    • Welded Seamless Edges
    • All Stainless Steel
    • Light Indicator for Grease Filter Maintenance
    • Light Indicator for Charcoal Filter Replacement
    Specifications
    • Duct size: 6” (150 mm)
    • Width: 29¹⁵⁄₁₆" | Height: 32 ⁹⁄ᶾ₂” – 47¼” | Depth: 21"
    • 120V 60 Hz 15 AMP
    • 46 lbs.
    Manuals/Downloads
    Installation Manual
    Spec sheet
    Attachment Size
    vechw30gss_spec_sheet.pdf 285.93 KB
    Accessories

    Ductless Conversion Kit allows the range hood to re-circulate air when outdoor venting is not available.

    Verona 30-inch range hood recirculating Filter
